Preliminary Ecore implementation of ER and BPC meta-models

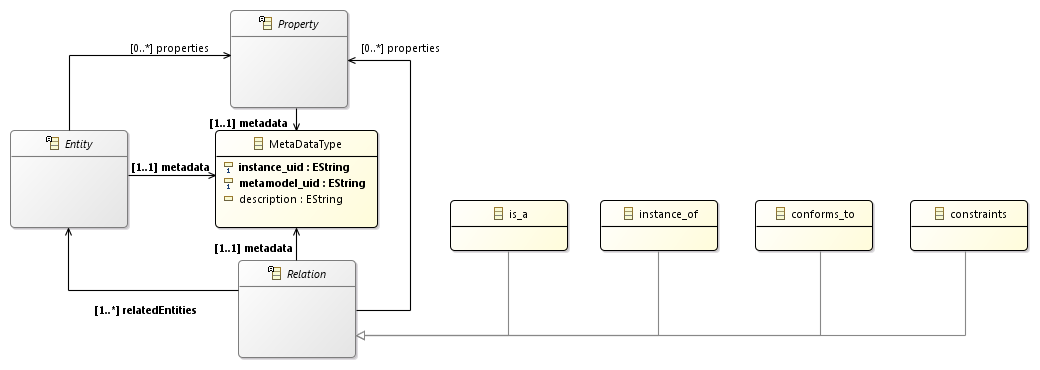

Entity-Relation (ER) meta-model

The concepts provided by the ER meta-model comply with the definitions in Scientific Grounding

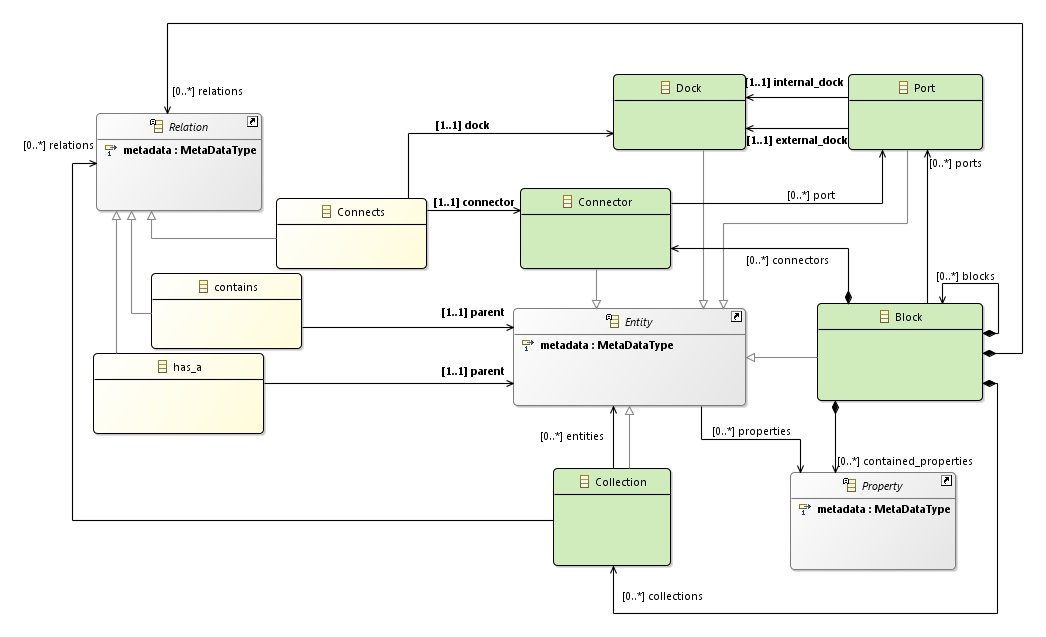

Block-Port-Connector (BPC) meta-model

The following meta-model includes concepts that are defined in Block-Port-Connector

Eclipse/Ecore implementation of ER and BPC meta-models

Eclipse/Ecore implementation of the above meta-models can be downloaded here

To access these meta-models you will need to:

1. Install Eclipse Neon Modeling.

2. Import the plugins in your workspace.
